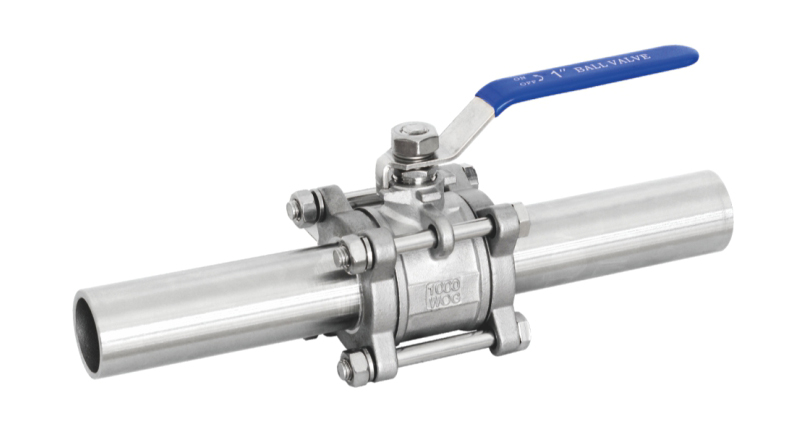

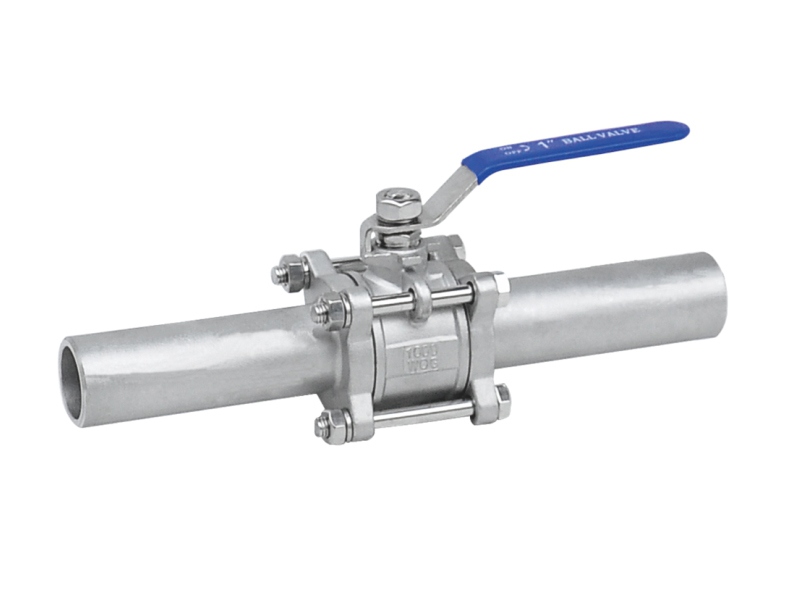

產品名稱：三片式加長對焊球閥
三片式加長對焊球閥執行標準
| 防爆闊桿/全通徑 |
| 適用溫度范圍 |
-20 to 120℃ |
| 使用壓力 |
≤1.6MPa |
| 適用介質 |
水、氣、油 |
| 設計制造 |
GB/T-12224/ANSIB16.34 |
| 螺紋標準 |
BSPT/BSP/NPT/DIN/JIS/RC/G |
| 檢查與測試 |
GB/T-13927/API598 |
| 氣壓測試 |
0.8MPa |
三片式加長對焊球閥材料列表
| 部件名稱 |
材質 |
| 閥體 |
CF8M |
CF8 |
| 閥蓋 |
CF8M |
CF8 |
| 球 |
SS316 |
SS304 |
| 閥桿 |
SS316 |
SS304 |
| 閥座 |
PTFE |
PTFE |
| 桿密封 |
PTFE |
PTFE |
| 中頭墊 |
PTFE |
PTFE |
| 填料壓套 |
SS202 |
SS202 |
| 手柄 |
SS202 |
SS202 |
| 鎖片 |
- |
- |
| 膠套 |
- |
- |
| 螺母 |
SS302 |
SS202 |
| 螺帽 |
PLASTIC |
PLASTIC |
| 彈墊 |
SS304 |
SS304 |
| 螺帽 |
SS304 |
SS304 |
| 彈墊 |
SS304 |
SS304 |

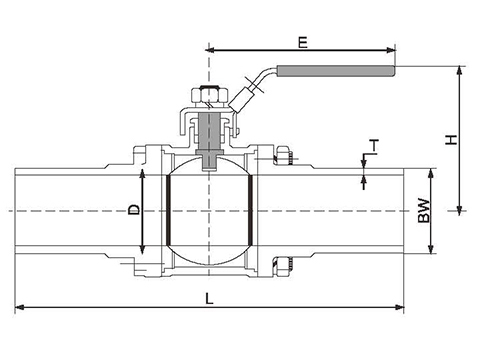

三片式加長對焊球閥外形尺寸
| DN |
SIZE |
L |
BW |
E |
H |
D |
T |
| 15 |
1/2" |
135 |
10.2 |
122.9 |
58.0 |
12.70 |
1.24 |
| 20 |
3/4" |
135 |
15.8 |
122.9 |
61.0 |
19.05 |
1.65 |
| 25 |
1" |
152 |
22.1 |
144.9 |
68.0 |
25.40 |
1.65 |
| 32 |
1-1/4" |
157 |
28.5 |
144.9 |
73.5 |
31.80 |
1.65 |
| 40 |
1-1/2" |
190 |
34.8 |
188.9 |
84.5 |
38.10 |
1.65 |
| 50 |
2" |
204 |
47.5 |
188.9 |
93.2 |
50.80 |
1.65 |
| 65 |
2-1/2" |
254 |
60.2 |
255.3 |
131.8 |
63.50 |
1.65 |
| 80 |
3" |
280 |
72.9 |
260.8 |
140.0 |
76.20 |
1.65 |
| 100 |
4" |
306 |
97.4 |
322.2 |
173.6 |
101.6 |
1.65 |
